Ultrasonic Smart Gas Meters

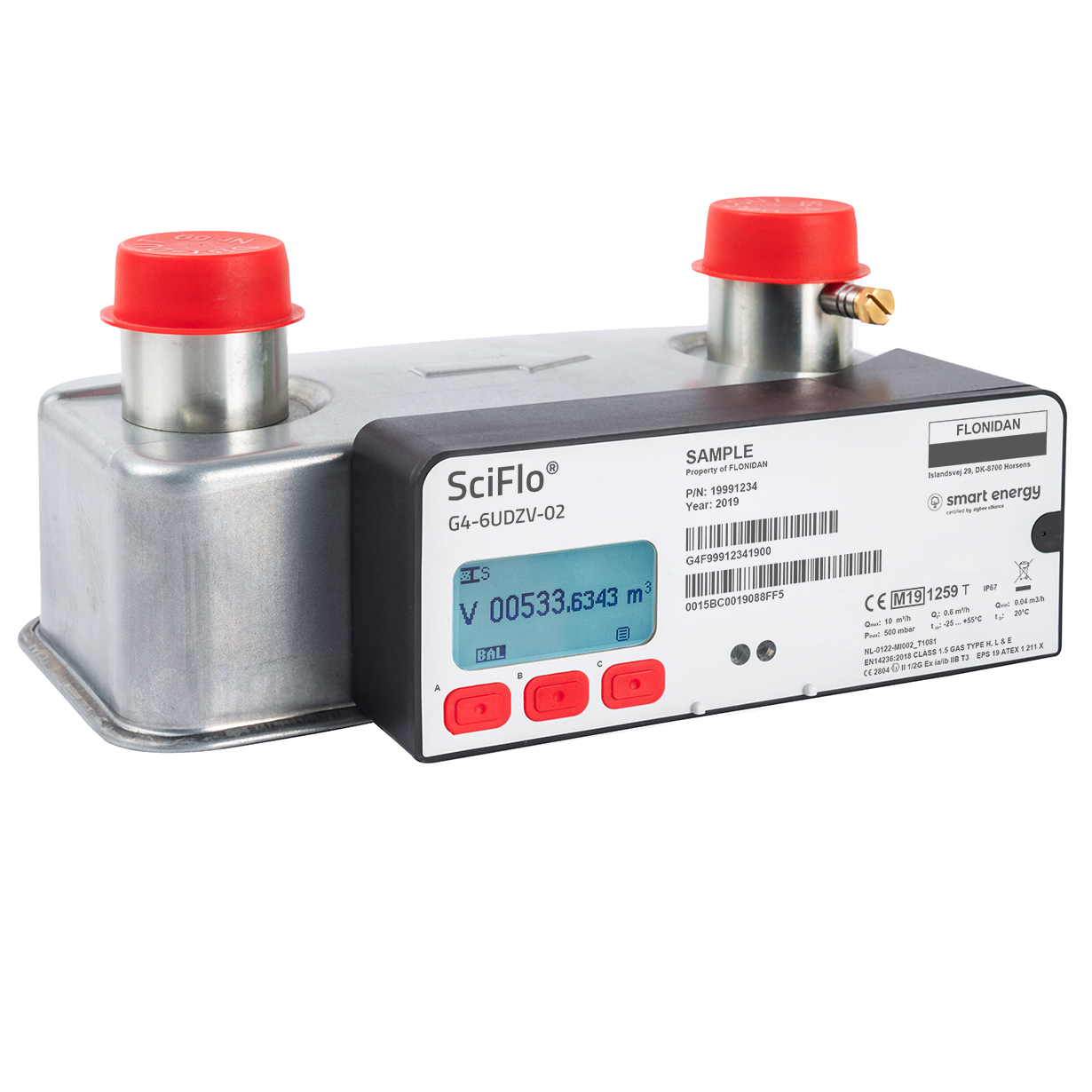

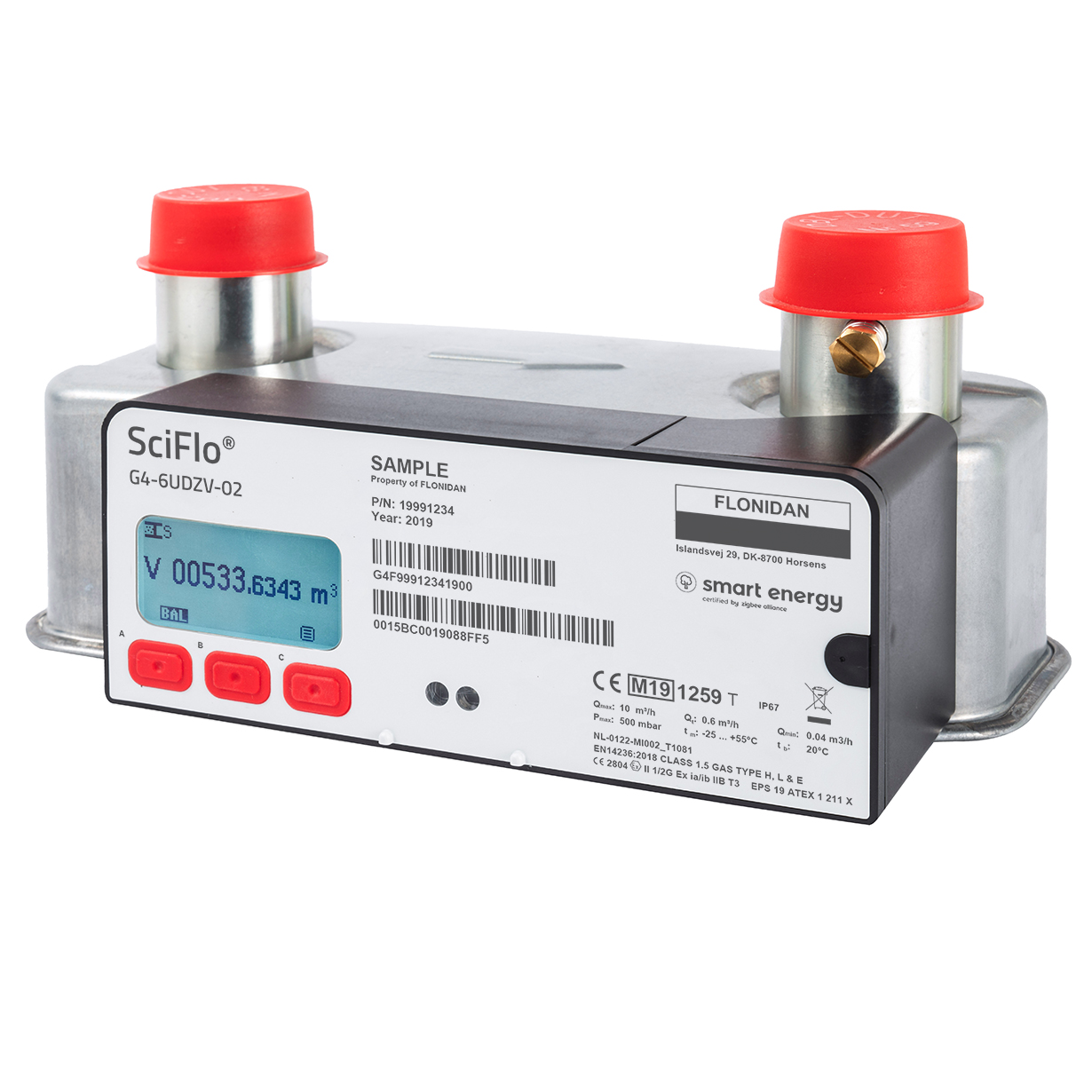

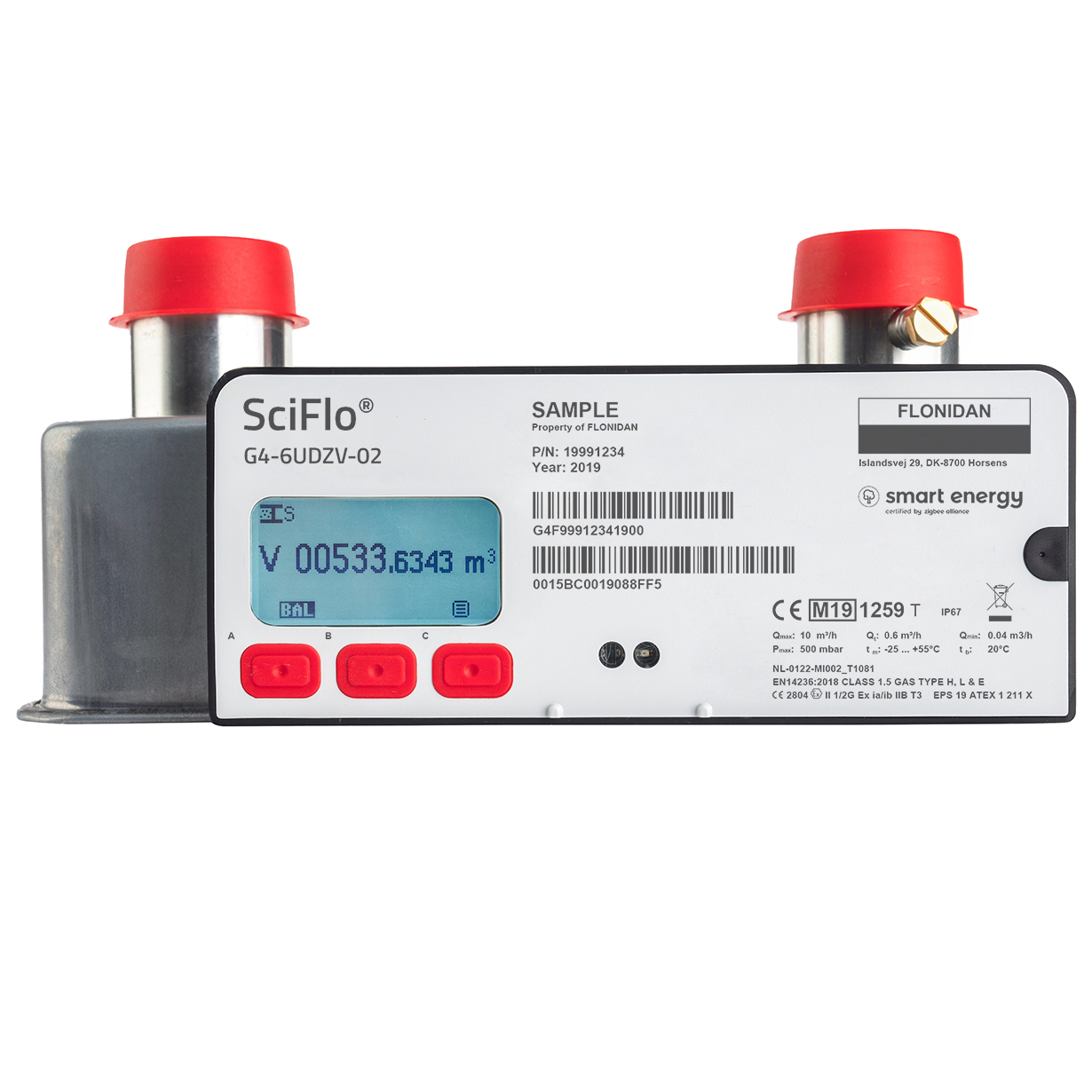

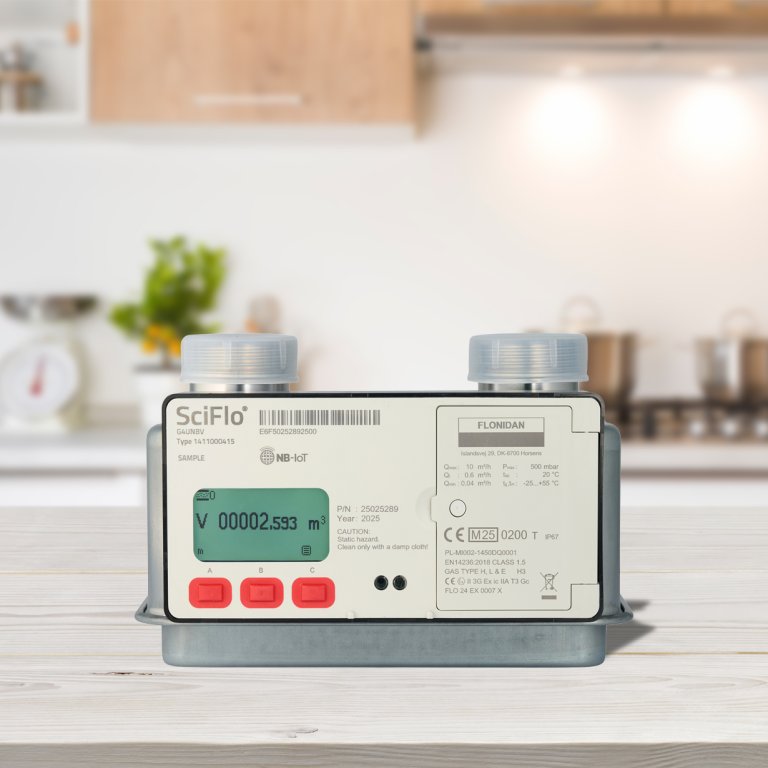

SciFlo® is a compact static gas meter based on ultrasonic measurement technology.
It is intended for energy measurement in residential sites where gas is the energy source. Volume is measured using bidirectional ultrasound, based on the time of flight method.
SciFlo® is encased in a stainless low-weight steel housing and operated via push buttons. IP Classification is IP67, which enables installation in semi-concealed meter boxes.
SciFlo® has backlit graphical display
COMMUNICATION
M-Bus and wM-Bus (868 MHz), EN 13757
ZigBee RF, 2.4 GHz/868MHz. Protocol acc. to SEP 1.4, offering full exchangeability
NB-IoT with Lightweight M2M protocol.
Firmware Upgrade Over the Air (OTA)
Optical interface (IEC 62056-21)
AES Encryption
Name | Type | Qmax | Qmin | Valve | V | pMax | Connections | Piping | |
---|---|---|---|---|---|---|---|---|---|
SciFlo® | G4 | 6 | 0,04 | Yes | n.a. | 0,2 | 152,4mm x BS1" | Two-pipe | |
SciFlo® | G4/G6 | 10 | 0,04 | No | n.a. | 0,5 | 220mm x G3/4" | Two-pipe | |
SciFlo® | G4/G6 | 10 | 0,04 | Yes | n.a. | 0,5 | 110mm x G5/4" | Two-pipe |
